產品型號 : PANASONIC AG-UX90PX
台松原廠公司貨，售後服務有保障
| General | |
| 項目 | 規格 |
| Power: | DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used) |
| Power Consumption | 12.2 W (when the LCD monitor is used) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10 % to 80 % (no condensation) |
| Weight | Body: Approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories) Shooting: Approx. 2.3 kg (5.07 lb) (including lens hood, battery, and eye cup) |
| Dimensions | 169 mm (W) x 195 mm (H) x 340 mm (D) (6-21/32 inches x 7-11/16 inches x 13-3/8 inches) (excluding protrusion and eye cup) 169 mm (W) x 195 mm (H) x 382 mm (D) (6-21/32 inches x 7-11/16 inches x 15-1/32 inches) (including eye cup, excluding protrusion) |
| Camera Unit | |
| Pickup Device | 1.0-type (effective size) MOS solid state image sensor |
| Effective Pixels | 17.78 megapixel: FHD 59.94p/29.97p/23.98p 8.59 megapixel: UHD 29.97p / 23.98p |
| Lens | Optical image stabilizer lens, optical 15x motorized zoom F2.8 to F4.5 (f=8.8 mm to 132 mm) 35 mm equivalent: f=24.5 mm to 367.5 mm: FHD 59.94p/29.97p/23.98p f=35.4 mm to 531.0 mm: UHD 29.97p/23.98p Filter Diameter: 67 mm ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64) Shortest Shooting Distance (M.O.D.): Approx. 1.0 m from the front lens |
| Gain Setting | L/M/H selector switch (toggle switch) Standard mode: 0 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) Extended ON: –3 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) 33 dB and 36 dB switched (when assigning [S.GAIN] to the USER button) |
| Color Temperature Setting | ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K) |
| Shutter Speed | 60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. |
| Shutter Speed (Slow Shutter) |
60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec 1/30 sec. 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec |
| VFR Recording Frame Rate | 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps) 24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps) |
| Minimum Subject Illumination | 1.3 lx (F2.8, Super gain 36 dB, Manual slow shutter 1/30s, |
| Digital Zoom | 2x/5x/10x, i.Zoom (max. 30x) izoom: max. 25x (optical zoom + digital zoom) |
| Lens Hood | Hood with lens cover |
| Memory Card Recorder | |
| Recording Media | SDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB), UHS-I supported |
| Recording Slot | Slot x 2 |
| System Format | 59.94 Hz |

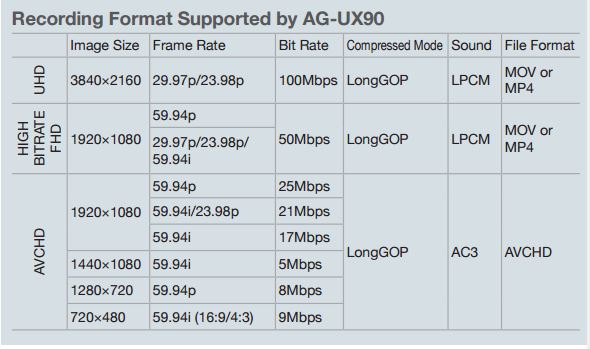

| Motion Picture Recording | Recording Format: MOV, MP4, AVCHD |
| Recording Mode |  |
  |
|
| 2 Slot Functions | Relay, Simultaneous, |
| Still Picture Recording Mode | JPEG (DCF/Exif2.2) |
| Still Picture Recording | Motion Picture Playback: , 8.3M: 3840 x 2160 (16:9), 2.1M: 1920 x 1080 (16:9), 0.9M: 1280 x 720 (16:9) |
| Digital Video | |
| Video Signal for External Output | 8bit 4:2:2 |
| Recording Video Signal | 8bit 4:2:0 |
| Video Compression Format | MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD) |
| Digital Audio | |
| Recording Audio Signal | 48 kHz/16 bit 2CH |
| Audio Signal Format | LPCM (MOV/MP4), Dolby Digital (AVCHD) |
| Headroom | 12 dB |
| Video Input/Output | |
| VIDEO OUT | AV connector x 1 |
| HDMI | Type A connector x 1, VIERA Link not supported Output format: 2160/29.97p/23.98p, 1080/59.94p/29.97p/23.98p/59.94i, 720/59.94p, 480/59.94p, |
| Audio Input | |
| Built-in Microphone | Stereo microphone |
| XLR Input | XLR (3-pin) x 2 (INPUT1, INPUT2) Input high impedance, LINE/MIC/MIC+48V (switchable SW) LINE: +4 dBu/0 dBu (switchable menu) MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu) |
| Audio Output | |
| HDMI | 2 ch (LPCM) |
| AUDIO OUT | AUDIO OUT x 2 |
| Headphone | 3.5 mm diameter stereo mini jack x 1 |
| Speaker | 20 mm diameter, round x 1 |
| Other Input/Output | |
| Camera Remote | 2.5 mm diameter super mini jack x1 (ZOOM, S/S) 3.5 mm diameter mini jack x1 (FOCUS, IRIS) |
| USB 3.0 HOST | Standard-A connector, 9-pin, external media device connection, bus power supported |
| USB 3.0 DEVICE | Micro-B connector, 10-pin, Mass storage function (read only) |
| DC IN 12V | DC 12V (11.4V to 12.6V) EIAJ Type4 |
| Monitor/Viewfinder | |
| LCD Monitor | 3.5 type LCD color monitor, Approx. 1,150,000 dots |
| Viewfinder | 0.24 type EVF Approx. 1,560,000 dots equivalent |
| Included Accessories | |
| Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, Microphone holder, Screw for microphone holder (12 mm), AC cable x 2, Eye cup, Lens hood, INPUT terminal cap, Operating instructions | |
| ※備註 本表僅供參考，若有任何差異將以原廠公告及實機功能為準。 | |
