產品型號 : PANASONIC AG-UX180
台松原廠公司貨，售後服務有保障
| General | |
| 項目 | 規格 |
| Power: | DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used) |
| Power Consumption | 19.7 W (when the LCD monitor is used) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Weight | Body: Approx. 2.0 kg (4.41 lb) (body only, excluding lens hood, battery, and accessories) Shooting: Approx. 2.4 kg (5.29 lb) (including lens hood, battery, and eye cup) |
| Dimensions | 173 mm (W) x 195 mm (H) x 346 mm (D) (6-13/16 inches x 7-11/16 inches x 13-5/8 inches) (excluding protrusion and eye cup) 173 mm (W) x 195 mm (H) x 392 mm (D) (6-13/16 inches x 7-11/16 inches x 15-7/16 inches) (including eye cup, excluding protrusion) |
| Camera Unit | |
| Pickup Device | 1.0-type (effective size) MOS solid state image sensor |
| Effective Pixels | 8.79 megapixel: UHD/FHD 59.94p/29.97p/23.98p 9.46 megapixel: 4K 24p |
| Lens | Optical image stabilizer lens, optical 20x motorized zoom F2.8 to F4.5 (f=8.8 mm to 176 mm) 35 mm equivalent: f=25.4 mm to 508.0 mm: UHD/FHD 59.94p/29.97p/23.98p f=24.0 mm to 480.0 mm: 4K24.00p Filter Diameter: 67 mm ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64) IR Filter: Incorporates the ON/OFF control function Shortest Shooting Distance (M.O.D.): Approx. 1.0 m from the front lens |
| Gain Setting | L/M/H selector switch Standard mode: 0 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) Extended ON: –3 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) 30 dB and 36 dB switched (when assigning [S. GAIN] to the USER button) |
| Color Temperature Setting | ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K) |
| Shutter Speed | When [SYSTEM MODE] = 59.94 Hz 60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. When [SYSTEM MODE] = 50.00 Hz 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec.,1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. |
| Shutter Speed (Slow Shutter) |
When [SYSTEM MODE] = 59.94 Hz 60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. When [SYSTEM MODE] = 50.00 Hz 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec. 25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. |
| Shutter Speed (Synchro Scan) |
When [SYSTEM MODE] = 59.94 Hz 59.94i/59.94p mode: 1/60.0 sec. to 1/249.7 sec. 29.97p mode: 1/30.0 sec. to 1/249.7 sec. 23.98p mode: 1/24.0 sec. to 1/249.6 sec. 24.00p mode: 1/24.0 sec. to 1/249.9 sec. When [SYSTEM MODE] = 50.00 Hz 50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec. |
| VFR Recording Frame Rate | When [SYSTEM MODE] = 59.94 Hz 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps) 24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps) SYSTEM MODE = 50.00, Hz 25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50 (fps) |
| Super-Slow Motion Recording | When [SYSTEM MODE] = 59.94 Hz Shooting frame rate FHD 120 fps, Slow motion effect 1/4 speed (when 30p mode), 1/5 speed (when 24p mode) When [SYSTEM MODE] = 50.00 Hz Shooting frame rate FHD 100fps, Slow motion effect 1/5 speed (when 25p mode) |
| Sensitivity | When [HIGH SENS.] mode F11 (2000 lx, 3200 K, 89.9 % reflect, 1080/59.94i) F12 (2000 lx, 3200 K, 89.9 % reflect, 1080/50i) |
| Minimum Subject Illumination | 0.2 lx (F2.8, gain 18 dB, Manual slow shutter 1/2S, When [HIGH SENS.] mode) |
| Digital Zoom | 2x/5x/10x, i.Zoom (max. 30x) |
| Lens Hood | Hood with lens cover |
| Memory Card Recorder | |
| Recording Media | SDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB), UHS-I supported |
| Recording Slot | Slot x 2 |
| System Format | 59.94 Hz/50 Hz |
| Motion Picture Recording | Recording Format: MOV, MP4, AVCHD |

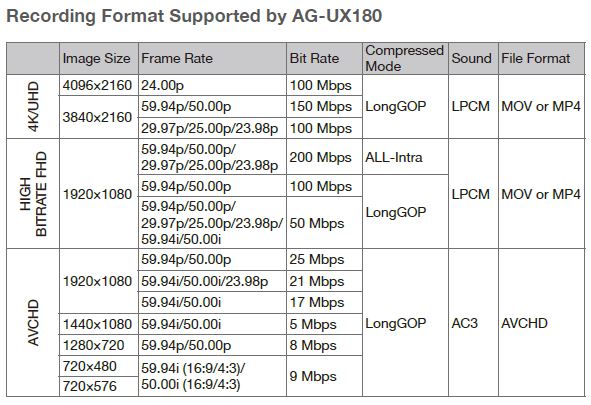

| Recording Mode |  |

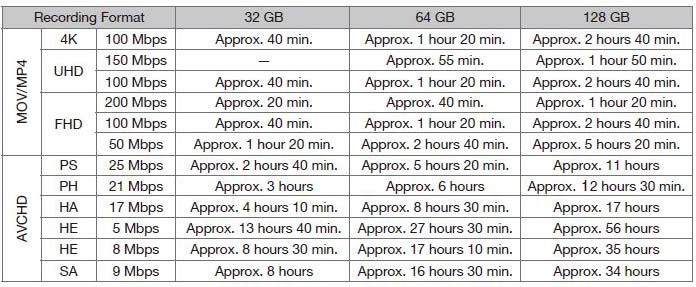

| Recording Time |  |
| 2 Slot Functions | Relay, Simultaneous, Background*2, Dual codec |
| Still Picture Recording Mode | JPEG (DCF/Exif2.2) |
| Still Picture Recording | Motion Picture Playback: 8.8M: 4096 x 2160 (17:9), 8.3M: 3840 x 2160 (16:9), 2.1M: 1920 x 1080 (16:9), 0.9M: 1280 x 720 (16:9) |
| Digital Video | |
| Video Signal for External Output | 8bit 4:2:2 |
| Recording Video Signal | 8bit 4:2:0 |
| Video Compression Format | MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD) |
| Digital Audio | |
| Recording Audio Signal | 48 kHz/16 bit 2CH |
| Audio Signal Format | LPCM (MOV/MP4), Dolby Digital (AVCHD) |
| Headroom | 12 dB |

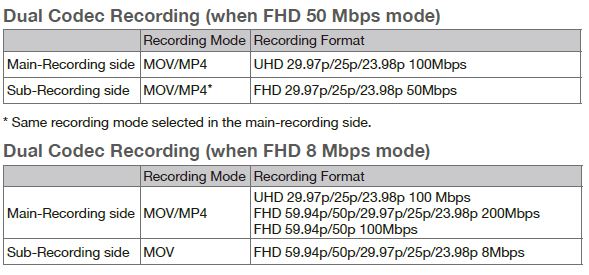

| Dual Codec | |
| Recording Method | MOV, MP4 |
| Video Compression Format | MPEG-4 AVC/H.264 High Profile |
| Audio Signal Format | LPCM |
| Recording Format |  |
| Recording Time | FHD 50Mbps 32 GB: Approx. 1 hour 20 min. 64 GB: Approx. 2 hour 40 min.. 128 GB: Approx. 5 hours 20 min FHD 8Mbps 32 GB : Approx. 8 hours 30 min. 64 GB : Approx.Approx. 17 hours 10 min 128 GB:Approx. 35 hours |
| Video Input/Output | |
| SDI OUT | BNC x 1, 0.8 V [p-p], 75 Ω, 3 G/1.5 G, HD SDI, SD SDI supported Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/24.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94i, 576/50.00i |
| VIDEO OUT | AV connector x 1 |
| HDMI | Type A connector x 1, VIERA Link not supported Output format: 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p |
| Audio Input | |
| Built-in Microphone | Stereo microphone |
| XLR Input | XLR (3-pin) x 2 (INPUT1, INPUT2) Input high impedance, LINE/MIC/MIC+48V (switchable SW) LINE: +4 dBu/0 dBu (switchable menu) MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu) |
| Audio Output | |
| SDI | 2 ch (LPCM) switchable gain: 0 dB/−6 dB/−12 dB |
| HDMI | 2 ch (LPCM) |
| AUDIO OUT | AV connector x 1, Output level: 600 Ω, 316 mV |
| Headphone | 3.5 mm diameter stereo mini jack x 1 |
| Speaker | 20 mm diameter, round x 1 |
| Other Input/Output | |
| Camera Remote | 2.5 mm diameter super mini jack x1 (ZOOM, S/S) 3.5 mm diameter mini jack x1 (FOCUS, IRIS) |
| TC PRESET IN/OUT | BNC x 1, Used as the input and output terminals Input: 1.0 V to 4.0 V [p-p] 10 KΩ Output: 2.0 V ± 0.5 V [p-p] low impedance |
| USB 3.0 HOST | Standard-A connector, 9-pin, external media device connection*4, bus power supported |
| USB 3.0 DEVICE | Micro-B connector, 10-pin, Mass storage function (read only) |
| DC IN 12V | DC 12V (11.4V to 12.6V) EIAJ Type4 |
| Monitor/Viewfinder | |
| LCD Monitor | 3.5 type LCD color monitor, Approx. 1,150,000 dots |
| Viewfinder | 0.39 type OLED (organic EL display) Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots |
| Included Accessories | |
| Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, Microphone holder kit, AC cable, Eye cup, Lens hood, INPUT terminal cap, Operating instructions |
|
| ※備註 本表僅供參考，若有任何差異將以原廠公告及實機功能為準。 | |
